RSID: <<2014-05-31T11:32Z MFSK-64 @ 6095000+1500>>





<STX>

Commemorating KBC Import/Export 25th Anniversary...

KBC Import/Export announces...

The Mighty KBC Listener Appreciation Contest.

The contest runs from May 1, 2014 until December 31, 2014.

The prize is a Tecsun PL-660 LW/MW/SW/FM/Air receiver.

See the contest rules at...

http://www.kbcradio.eu/index.php?dir=contest



<EOT>





<STX>


Sending Pic:134x90C;






<EOT>









SAM-USB

USB  +  digital AF-Noise-Reduction in STUDIO1



  I'm not an enthusiast of digital noise reduction.
  It makes the sound impression sterile and also in images missing

  some   details               roger





















██╗   ██╗ ██████╗  █████╗     ██████╗  █████╗ ██████╗ ██╗ ██████╗  ██████╗ ██████╗  █████╗ ███╗   ███╗
██║   ██║██╔═══██╗██╔══██╗    ██╔══██╗██╔══██╗██╔══██╗██║██╔═══██╗██╔════╝ ██╔══██╗██╔══██╗████╗ ████║
██║   ██║██║   ██║███████║    ██████╔╝███████║██║  ██║██║██║   ██║██║  ███╗██████╔╝███████║██╔████╔██║
╚██╗ ██╔╝██║   ██║██╔══██║    ██╔══██╗██╔══██║██║  ██║██║██║   ██║██║   ██║██╔══██╗██╔══██║██║╚██╔╝██║
 ╚████╔╝ ╚██████╔╝██║  ██║    ██║  ██║██║  ██║██████╔╝██║╚██████╔╝╚██████╔╝██║  ██║██║  ██║██║ ╚═╝ ██║
  ╚═══╝   ╚═════╝ ╚═╝  ╚═╝    ╚═╝  ╚═╝╚═╝  ╚═╝╚═════╝ ╚═╝ ╚═════╝  ╚═════╝ ╚═╝  ╚═╝╚═╝  ╚═╝╚═╝     ╚═╝














                                                                    http://voaradiogram.net/








RSID: <<2014-05-31T16:01Z MFSK-32 @ 17860000+1500>>





<STX>


Welcome to program 61 of VOA Radiogram from the Voice of America.

I'm Kim Andrew Elliott in Washington.

On today's program, instead of the usual news stories from VOA
News, we will experiment with the transmission and decoding of
images.

In the first part of today's program, we will experiment with
MFSK images. Later in the program, an EasyPal digital image will
be transmitted. (Please start your EasyPal software.)

Please send reception reports to radiogram@voanews.com.

And visit voaradiogram.net.

Twitter: @VOARadiogram

<EOT>





<STX>

MFSK IMAGES

The Fldigi software allows for the transmission of MFSK images at
different speeds: X1, X2, and X4. X2 and X4 "paint" more quickly,
but result in lower resolution: X2 is fuzzier, and X4 is
fuzziest. (Fldigi software is required to decode the X2 and X4
images.)

As the symbol rate (baud) of the MFSK modes increases from MFSK32
to MFSK64 to MFSK128, the resolution of images sent in those
modes also increases. The time required to send a picture is the
same for MFSK32, MFSK64, and MFSK128.

We therefore have two variables: the transmission speed and the
symbol rate of the MFSK mode.

We will transmit the same VOA Radiogram test card (254x197
pixels) as follows:

MFSK32 X1
MFSK32 X2
MFSK32 X4

MFSK64 X1
MFSK64 X2
MFSK64 X4

MFSK128 X1
MFSK128 X2
MFSK128 X4

First the MFSK32 images in X1, X2, and X4...


<EOT>






RSID: <<2014-05-31T16:02Z MFSK-32 @ 17860000+1500>>





<STX>
Sending Pic:254x197C;

<STX>
Sending Pic:254x197Cp4;

<STX>
Sending Pic:254x197Cp2;










<STX>
VOA Radiogram now changes to MFSK64...
<EOT>





RSID: <<2014-05-31T16:08Z MFSK-64 @ 17860000+1500>>
<STX>
This is VOA Radiogram in MFSK64...
Now the MFSK64 images in X1, X2, and X4...
<EOT>





<STX>
Sending Pic:254x197C;

<STX>
Sending Pic:254x197Cp4;

<STX>
Sending Pic:254x197Cp2;




<STX>
VOA Radiogram now changes to MFSK128...
<EOT>





RSID: <<2014-05-31T16:13Z MFSK-128 @ 17860000+1500>>
<STX>

This is VOA Radiogram in MFSK128...
Now the MFSK128 images in X1, X2, and X4...
<EOT>





<STX>
Sending Pic:254x197C;

<STX>
Sending Pic:254x197Cp4;

<STX>
Sending Pic:254x197Cp2;




<STX>

Radiogram now changes to MFSK32...

<EOT>
















RSID: <<2014-05-31T16:18Z MFSK-32 @ 17860000+1500>>





<STX>


In MFSK32, this is VOA Radiogram from the Voice of America.

Please send reception reports to radiogram@voanews.com

And visit voaradiogram.net

Twitter: @VOARadiogram



If you have not done so, please start your EasyPal software.

It has been several months since we have experimented with the
EasyPal digital image mode on VOA Radiogram.

EasyPal is the work of Erik, VK4AES, in Australia. His software
uses DRM (Digital Radio Mondiale) encoding to allow the sending
of image files over an HF or VHF using only 2.5Khz (same as
voice). EasyPal is also known as Digital SSTV (slow scan
television).

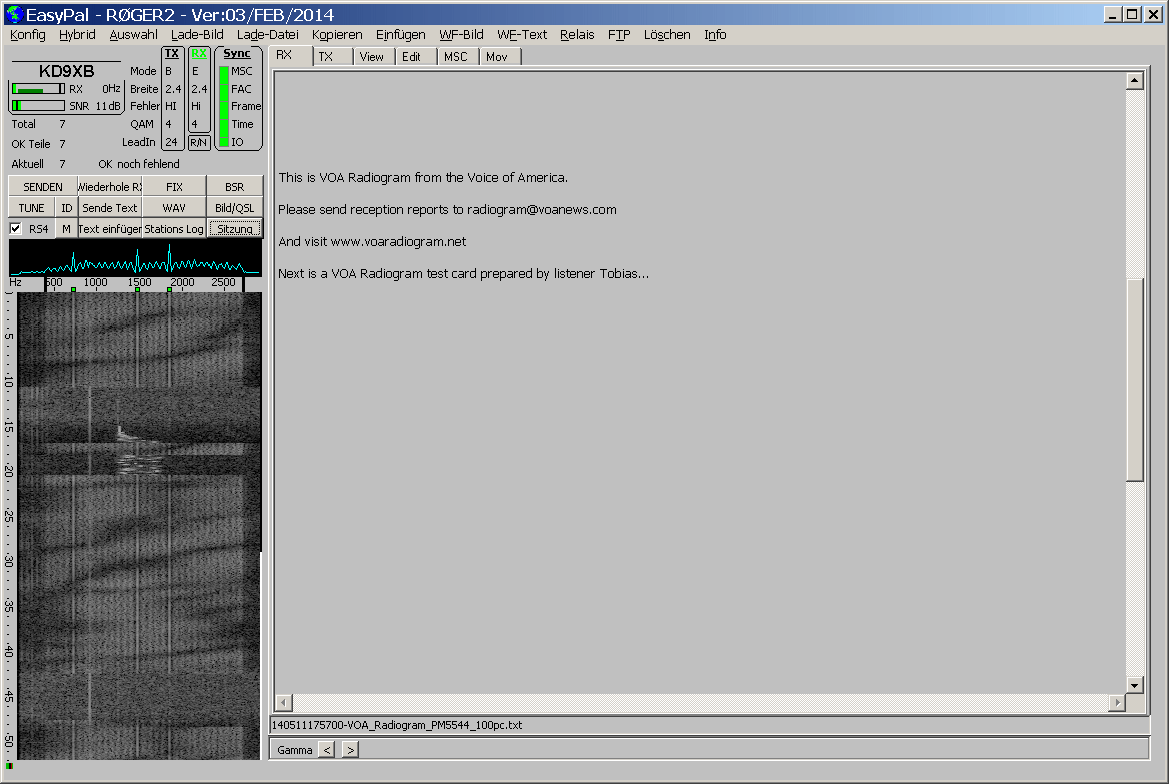

Next on VOA Radiogram will be an EasyPal text transmission,
followed by the same VOA Radiogram test card that was transmitted
in the MFSK modes. The card will be larger and in higher
resolution. The picture transmission will be just over 7 minutes.
The picture might appear before the 7-minute transmission is
completed, or it might not appear at all -- there is a rather
high failure rate with EasyPal on shortwave.

Now the EasyPal transmissions...


<EOT>


































RSID:  <<2014-05-31T16:27Z MFSK-32 @ 17860000+1500>>






<STX>


In MFSK32, this is VOA Radiogram from the Voice of America...

Please send reception reports to radiogram@voanews.com.

And visit voaradiogram.net.

Twitter: @VOARadiogram

Thanks to colleagues at the Edward R. Murrow shortwave
transmitting station in North Carolina.

I'm Kim Elliott. Please join us for the next VOA Radiogram.

This is VOA, the Voice of America.


<EOT>

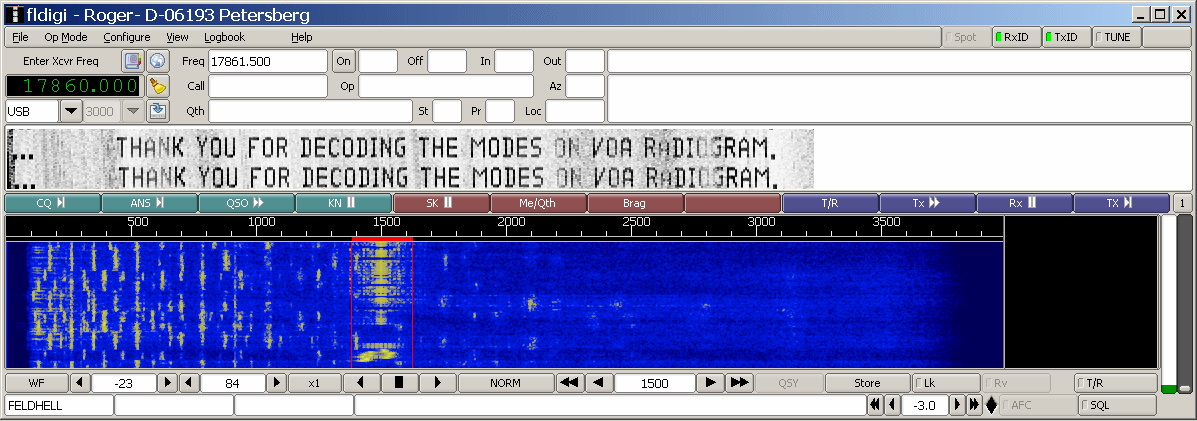

RSID: <<2014-05-31T16:28Z Feld Hell @ 17860000+1500>>










www.rhci-online.net/radiogram/radiogram.htm



 QTH:

 D-06193 Petersberg (Germany/Germania)

 Ant.:

 Dipol for 40m-Band

 RX:

 ICOM IC-R75 + IF-mixer

 Software IF:

 con STUDIO1 - Software italiano per SDR       [SAM-USB]

 Software AF:

 Fldigi 3.21.82  +   flmsg 1.1.33AC

 OS:

 German XP-SP3 with support for asian languages

 PC:

 MEDION Titanium 8008  (since 2003)   [ P4  -  2,6 GHz]

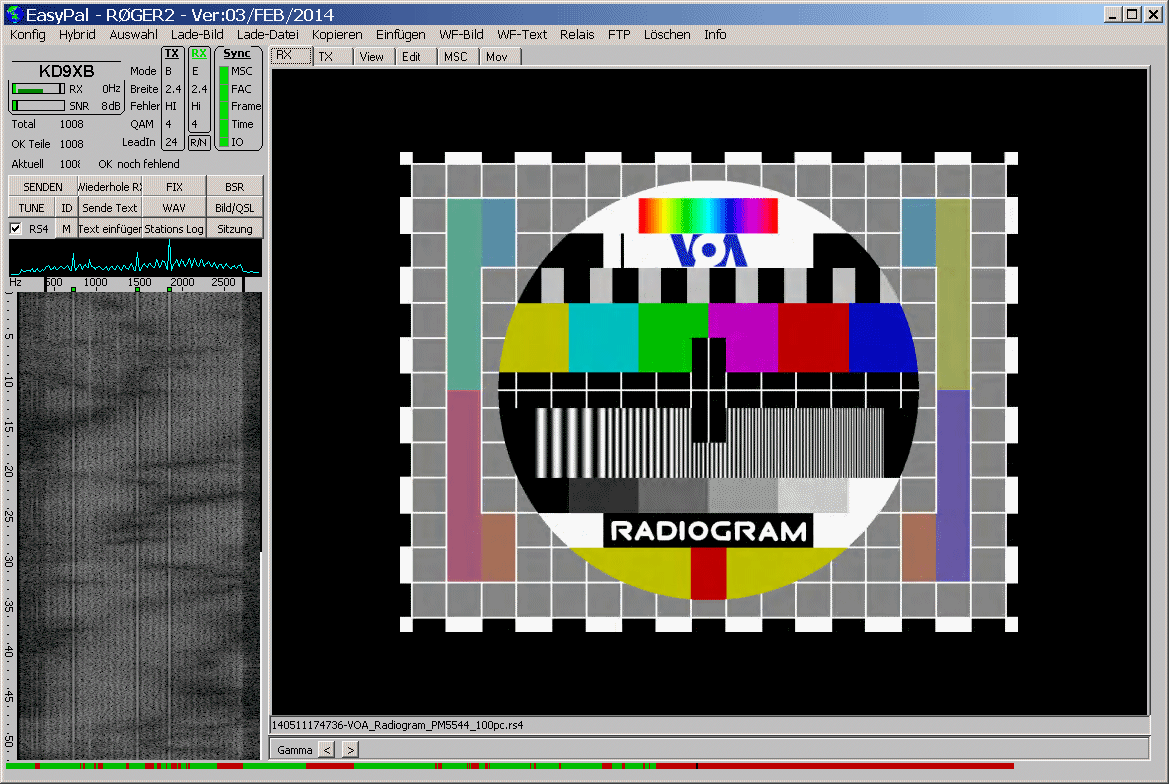

DRM-images  -   received via EASYPAL/DSSTV on 14233kHz/USB    (FRG-100 / Dipol for ~12 MHz)





TF8SM  30.Mai.14 13:06 LCL Time 6dB B/2.4/HI/16/lng FAIL
TF3ARI 30.Mai.14 13:36 LCL Time 8dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 13:37 LCL Time 9dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 13:37 LCL Time 8dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 13:37 LCL Time 7dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 13:47 LCL Time 8dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 14:22 LCL Time 8dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 14:23 LCL Time 5dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 14:25 LCL Time 6dB B/2.4/HI/
16/lng FAIL
TF3ARI 30.Mai.14 14:26 LCL Time 7dB B/2.4/HI/
16/lng FAIL
9H1LC  30.Mai.14 14:55 LCL Time 7dB E/2.4/HI/4/lng OK
VE1HBV 30.Mai.14 15:38 LCL Time 5dB E/2.4/HI/4/lng OK
VE1HBV 30.Mai.14 15:40 LCL Time 4dB E/2.4/HI/4/lng OK
VE1HBV 30.Mai.14 15:47 LCL Time 6dB E/2.4/HI/4/lng OK
9H1LC  30.Mai.14 16:38 LCL Time 6dB E/2.4/HI/4/lng OK
9H1LC  30.Mai.14 16:44 LCL Time 7dB E/2.4/HI/4/lng OK
9H1LC  30.Mai.14 16:47 LCL Time 6dB E/2.4/HI/4/lng OK
9H1LC  30.Mai.14 16:47 LCL Time 6dB E/2.4/HI/4/lng OK
9H1LC  30.Mai.14 16:49 LCL Time 5dB E/2.4/HI/4/lng OK
OE3AWA 30.Mai.14 16:55 LCL Time 13dB E/2.4/HI/4/lng OK
OE3AWA 30.Mai.14 16:57 LCL Time 8dB E/2.4/HI/4/lng OK
TF3ARI 30.Mai.14 17:00 LCL Time 5dB E/2.4/HI/4/lng OK



After several failed attempts in QAM16    TF3ARI changed finally to QAM4.    At last the penny's dropped..........      ;-)









http://www.ice.is/TF3ARI/adalsida.htm

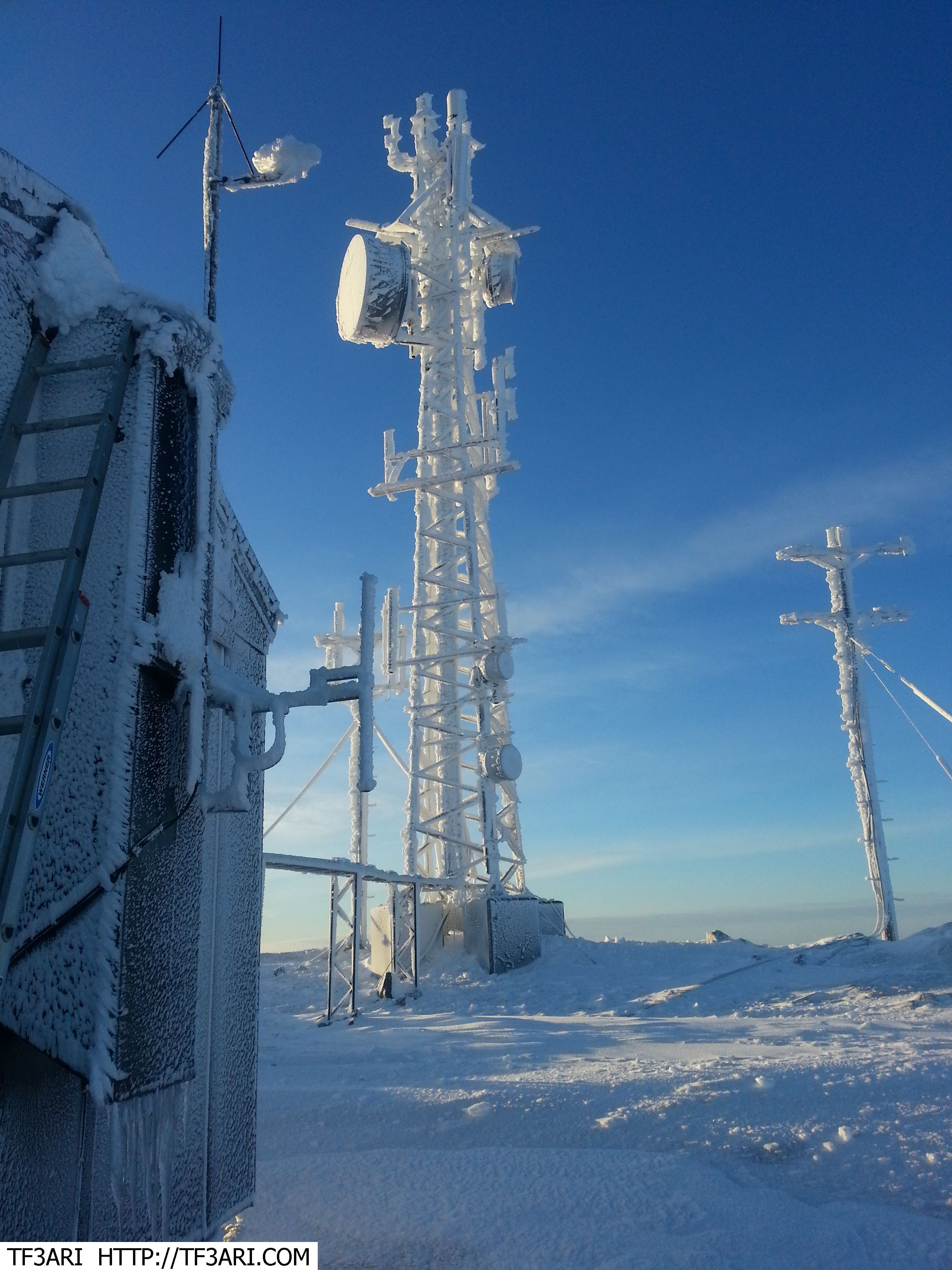

Ari Johannesson, from  Reykjavik/Iceland
